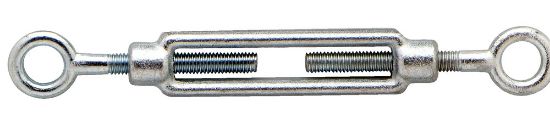

DX Spanschroef oog-oog DIN1480 VZ

Spanschroef

Varianten laden…

Productnummer	EAN	Fabrikant artikelnummer	Draad	Lengte	Klembereik	Werklast	Diameter oog inwendig
5000052479	8716336475857,8716336553920,8716336160456,BMPA148008B	8000.148.008B	M8	110	0 - 75	140	14
5000052478	8716336475659,8716336553906,BMPA148006B	8000.148.006B	M6	110	0 - 80	70	11
5000052477	8713138543050,8713138563058	9.514148005	M5	70	0 - 50	70	8
5000052476	8716336478759,8716336554118	8000.148.030B	M30	255	0 - 160	2100	31
5000052475	8716336478353,8716336554095	8000.148.024B	M24	255	0 - 170	1300	34
5000052474	8713138543456,8713138563454	9.514148022	M22	220	0 - 140	1100	30
5000052473	8716336477752,8716336554064,BMPA148020B	8000.148.020B	M20	200	0 - 130	910	26
5000052472	8716336477356,8716336554033,8716336163853,BMPA148016B	8000.148.016B	M16	170	0 - 110	600	22
5000052471	8713138543302,8713138563300	9.514148014	M14	140	0 - 90	400	18
5000052470	8716336476557,8716336553999,BMPA148012B,8716336161958	8000.148.012B	M12	125	0 - 80	310	18
5000052469	8716336476151,8714140226917,8716336161255,BMPA148010B	8000.148.010B	M10	125	0 - 85	220	18
